Weldolet
Product Details

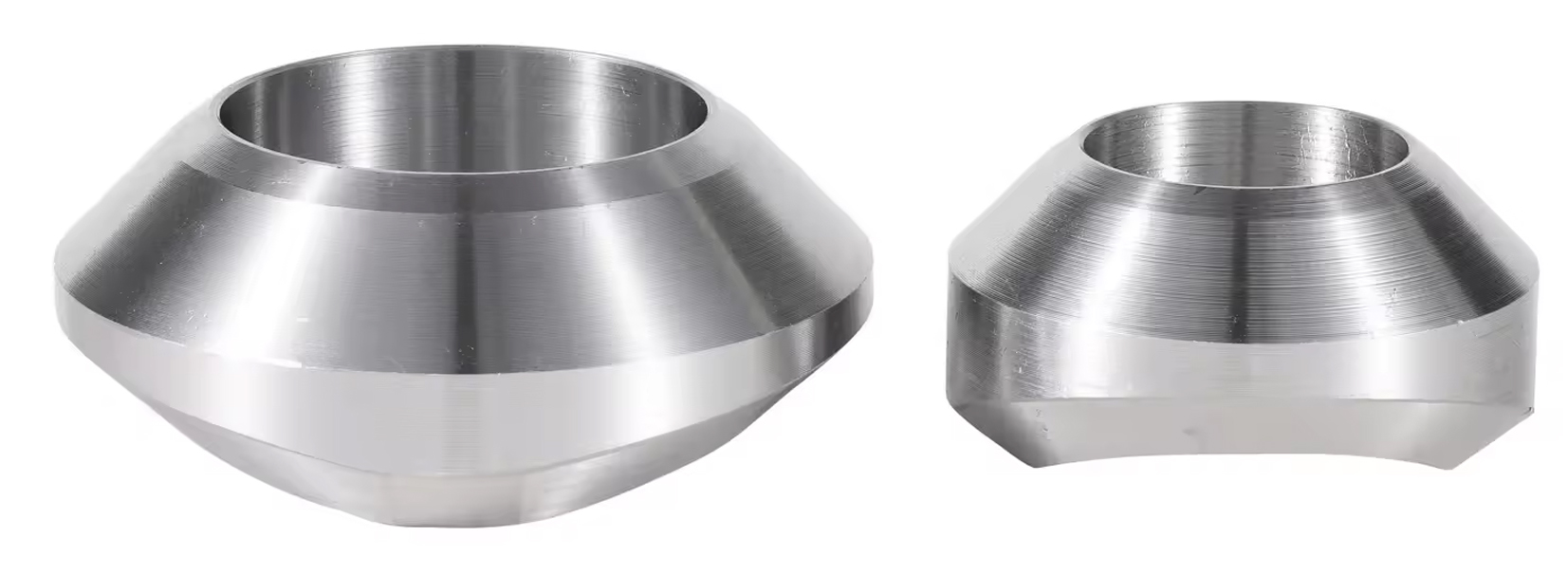

Weldolet
We manufacture a wide range of high-strength, corrosion-resistant welding outlets (olet fittings) in materials such as Stainless Steel, Carbon Steel, and various alloys to ensure reliable, integral branch connections even in high-pressure and high-temperature environments.
Description
A Welding Outlet, or Weldolet, is the most common integrally reinforced branch connection fitting. It is designed to create a 90° butt-weld branch on a run pipe, providing a strong, full-penetration weld connection. The beveled outlet end is matched to the schedule of the branch pipe, ensuring a smooth flow transition and reducing stress concentration. Manufactured through a forging process from carbon steel, stainless steel, and alloy steels, Weldolets are the standard choice for high-pressure, high-temperature applications in oil & gas, petrochemical, and power generation, offering a reliable, high-strength alternative to a standard reducing tee.
Specifications of Weldolet
| Specification | Details |
|---|---|
| Product | Welding Outlet (Weldolet) |
| Outlet Size Range | 1/2" to 36" (DN15 to DN900) |
| Run Pipe Size Range | Up to 72" (DN1800) or larger |
| Outlet Connection Type | Butt Weld (BW) - Beveled end matches branch pipe schedule |
| Schedules | Standard (STD), Extra Strong (XS), Sch 40, Sch 80, Sch 160, XXS |
| Standards |
MSS-SP-97 (Integrally Reinforced Forged Branch Outlet Fittings) ASME B16.9 (Buttwelding Ends) ASTM A105, ASTM A182, ASTM A350 |
| Material Grades |
Carbon Steel: ASTM A105, A350 LF2 Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 Alloy Steel: ASTM A182 F1, F5, F9, F11, F22, F91 Duplex Steel: UNS S31803, S32205 Nickel Alloys: Inconel 625, Monel 400, Hastelloy C276 |
| Manufacturing Process | Forged Body, Heat Treated, Precision Machined, Beveled Outlet |
| Testing & Certification |
PMI, NDT (UT, MT, PT), Dimensional Check, Bevel Check Mill Test Certificates (EN 10204 3.1 / 3.2) |
| Applications | High-Pressure & High-Temperature Piping, Refineries, Power Plants, Oil & Gas Pipelines, Petrochemical, Chemical Processing |
| Weldolet Design Features |
Butt-Weld Outlet: Allows for a strong, full-penetration weld. Forged Reinforcement: Integrally reinforces the branch connection. Contoured Base: Beveled base ensures a clean, strong weld to the run pipe. Smooth Flow: Tapered design provides smooth flow transition. Full Size or Reducing: Can be used for equal or reducing branches. |
Key Features
01 High-Strength Butt-Weld Joint
Features a 90° butt-weld outlet that allows for a strong, full-penetration weld, making it the most reliable connection for critical, high-pressure systems.
02 Integral Forged Reinforcement
Forged as a single piece to provide full integral reinforcement, replacing the need for a reinforcing pad and ensuring high strength at the branch connection.
03 Optimized Flow Design
The tapered design and beveled outlet provide a smooth flow transition, minimizing turbulence, pressure drop, and stress concentration at the joint.
04 Standards Compliant
Designed and manufactured in full compliance with MSS-SP-97 and ASME B16.9 (for end bevel), ensuring global compatibility and safety.
05 High-Pressure & Temp Service
The preferred choice for demanding, high-pressure and high-temperature services where joint integrity and strength are paramount.
06 Material & Schedule Matching
Available in a full range of materials and schedules to perfectly match the run pipe and branch pipe, ensuring consistent system properties.
