Elbow Welding Outlet
Product Details
Elbow Welding Outlet
We manufacture a wide range of high-strength, corrosion-resistant welding outlets (olet fittings) in materials such as Stainless Steel, Carbon Steel, and various alloys to ensure reliable, integral branch connections even in high-pressure and high-temperature environments.
Description

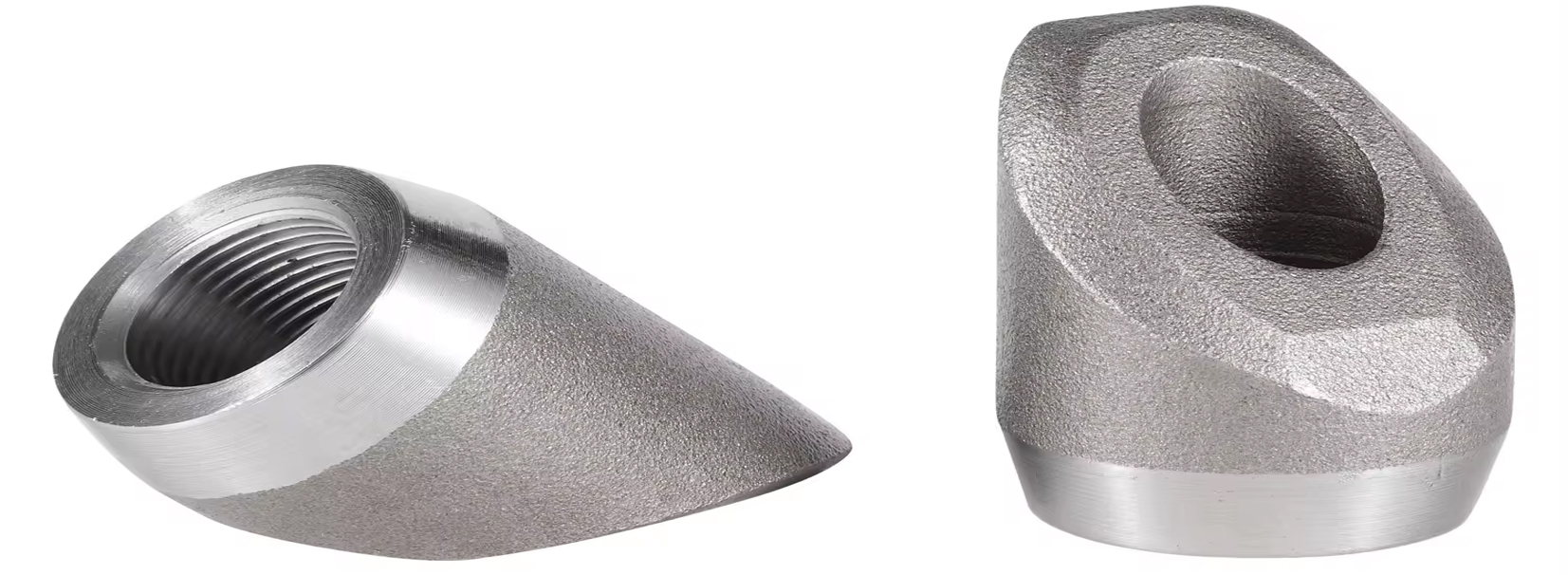

An Elbow Welding Outlet, often called an Elbolet, is a specialized integrally reinforced branch fitting designed to create a branch connection directly from an elbow. This unique design is contoured to fit the radius of an elbow, eliminating the need for a separate tee fitting and making it ideal for space-saving applications. Manufactured using a high-strength forging process from materials like carbon steel, stainless steel, and alloy steels, Elbolets provide a reliable, high-strength connection for high-pressure and high-temperature services. They are widely used in oil & gas, petrochemical, and power generation industries and are available with socket weld, threaded, or butt weld outlet connections.
Specifications of Elbow (Welding Outlet)
| Specification | Details |
|---|---|
| Product | Elbow Welding Outlets (Elbolets) |
| Size Range | Outlet Size: 1/2" to 24" (DN15 to DN600) On Elbow Radius: 1" to 36" (DN25 to DN900) |
| Outlet Connection Types | Socket Weld (SW): Class 3000, 6000 Threaded (NPT/BSP): Class 3000, 6000 Butt Weld (BW): Sch 40, Sch 80, XS, Sch 160, XXS |
| Standards |
MSS-SP-97 (Integrally Reinforced Forged Branch Outlet Fittings) ASME B16.11 (Socket-Welding and Threaded Forged Fittings) ASME B16.9 (Factory-Made Wrought Buttwelding Fittings) ASTM A105, ASTM A182, ASTM A350 |
| Material Grades |
Carbon Steel: ASTM A105, A350 LF2 Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 Alloy Steel: ASTM A182 F1, F5, F9, F11, F22, F91 Duplex Steel: UNS S31803, S32205 Nickel Alloys: Inconel 600/625, Monel 400, Hastelloy C276 |
| Manufacturing Process | Forged, Heat Treated, Precision Machined, Contoured to Elbow Radius |
| Elbow Fit | Designed for 90° Long Radius (LR) & Short Radius (SR) Elbows. Also available for 45° Elbows. |
| Surface Finish | Black Painted, Galvanized (Hot-Dip), Polished, Anti-Rust Coated |
| Testing & Certification |
NDT (UT, RT, MT, PT), PMI, TPI Inspection, Hardness Test, Dimensional Check Mill Test Certificates (EN 10204 3.1 / 3.2) |
| Applications | Oil & Gas, Petrochemical, Power Generation, Chemical Processing, Refineries, Marine, Industrial Piping where space is limited on an elbow. |
| Special Features | Integrally Reinforced, Space-Saving Design, Fits Elbow Radius, High Strength, Eliminates the need for a Tee fitting. |
| Elbolet Design Features |
Contoured Base: Specifically designed to fit the unique radius of a 90° or 45°
elbow. Forged Strength: Provides superior strength and fatigue resistance at the branch connection. Versatile Outlets: Available in Socket Weld, Threaded, and Butt Weld connections. Space Efficiency: Eliminates the need for a separate tee fitting, ideal for tight spaces. Standard Compliance: Manufactured per MSS-SP-97. |
Key Features
01 Space-Saving Elbow Fit
Designed with a contoured base to fit perfectly onto the radius of 90° or 45° elbows, eliminating the need for a tee fitting in tight spaces.
02 Integrally Reinforced Strength
Manufactured using advanced forging techniques to provide integral reinforcement, ensuring a high-strength, durable connection that can handle high pressure.
03 Versatile Outlet Types
Available with Socket Weld (SW), Threaded (NPT/BSP), or Butt Weld (BW) outlets to easily integrate with various branch piping requirements.
04 Standards Compliant
Conforms to MSS-SP-97 and relevant ASTM material specifications to ensure global compatibility, quality, and safe operation in critical systems.
05 Material & Corrosion Resistance
Available in carbon steel, stainless steel, and alloy steels to withstand corrosion, high temperatures, and harsh industrial environments.
06 Optimized Flow Dynamics
The contoured design provides a smooth transition from the elbow to the branch, minimizing flow restriction and turbulence at the connection point.
