Nipple Welding Outlet
Product Details
Nipple Welding Outlet
We manufacture a wide range of high-strength, corrosion-resistant welding outlets (olet fittings) in materials such as Stainless Steel, Carbon Steel, and various alloys to ensure reliable, integral branch connections even in high-pressure and high-temperature environments.
Description

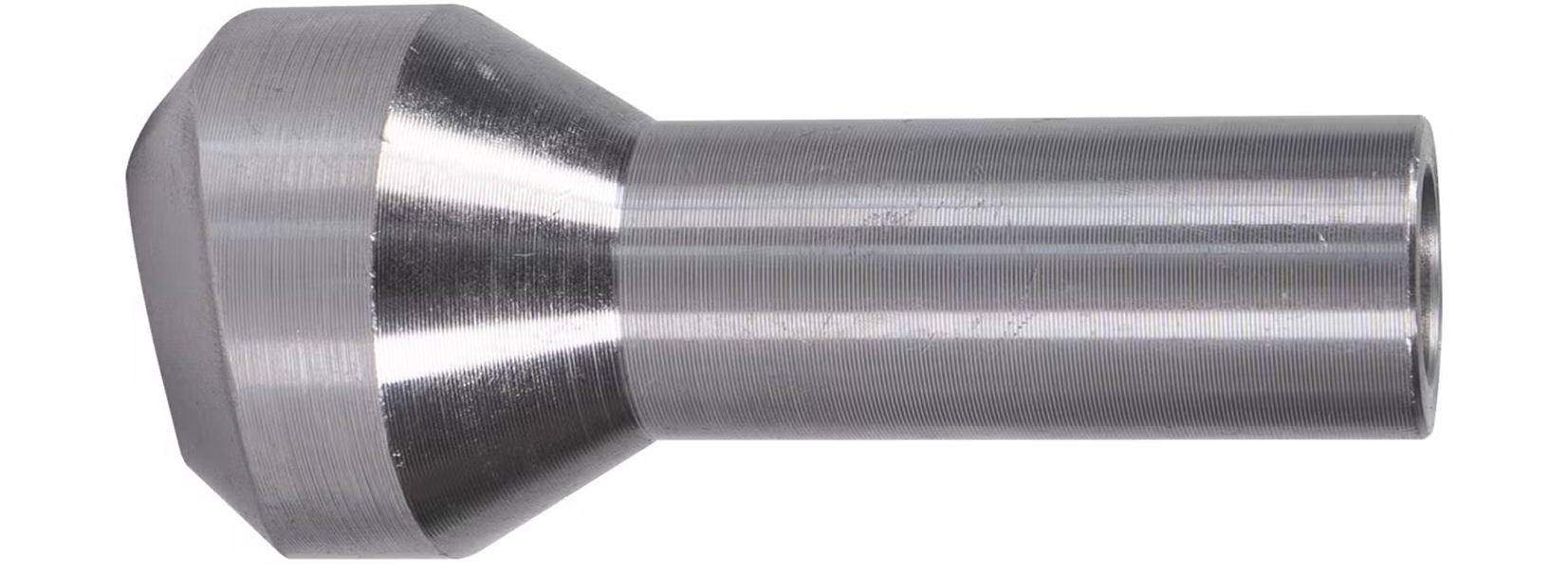

A Nipple Welding Outlet, commonly known as a Nipolet, is a unique one-piece forged branch fitting that combines an outlet with a built-in, pre-attached pipe nipple. This integrated design is highly efficient as it eliminates one full weld during installation, saving time and labor. It provides a high-strength, 90° integrally reinforced connection from a run pipe, extending out to a socket weld or threaded end. Manufactured from carbon steel, stainless steel, and alloy steels, Nipolets are ideal for high-pressure and high-temperature applications, especially for vents, drains, and instrument connections in oil & gas, petrochemical, and power plants.
Specifications of Nipple (Welding Outlet)
| Specification | Details |
|---|---|
| Product | Nipple Welding Outlets (Nipolets) |
| Outlet Size Range | 1/2" to 4" (DN15 to DN100) |
| Run Pipe Size Range | Up to 36" (DN900) |
| Nipple Lengths | Standard lengths (e.g., 3.5", 4.5", 5.5", 6.5") or custom lengths as required |
| Outlet End Types | Socket Weld (SW): Class 3000, 6000 Threaded (NPT/BSP): Class 3000, 6000 |
| Base Weld Type | Butt Weld (BW) base, contoured to fit the run pipe |
| Standards |
MSS-SP-97 (Integrally Reinforced Forged Branch Outlet Fittings) ASME B16.11 (Socket-Welding and Threaded Forged Fittings) ASTM A105, ASTM A182, ASTM A350 |
| Material Grades |
Carbon Steel: ASTM A105, A350 LF2 Stainless Steel: ASTM A182 F304, F304L, F316, F316L Alloy Steel: ASTM A182 F1, F5, F9, F11, F22, F91 Duplex Steel: UNS S31803, S32205 Nickel Alloys: Inconel 625, Monel 400, Hastelloy C276 |
| Manufacturing Process | Forged Body & Nipple, Heat Treated, Precision Machined |
| Testing & Certification |
PMI, NDT (MT, PT), Dimensional Check, Hardness Test Mill Test Certificates (EN 10204 3.1 / 3.2) |
| Applications | Vents, Drains, Instrument Connections, Small-Bore Branching, Oil & Gas, Petrochemical, Power Plants, Refineries |
| Nipolet Design Features |
One-Piece Construction: Combines outlet and nipple, saving one field weld. Forged Strength: Ensures high mechanical strength and reliability. Versatile Outlets: Available in NPT or SW ends for easy valve hook-up. Contoured Base: Beveled base ensures a proper weld fit to the run pipe. Standard Compliance: Manufactured per MSS-SP-97. |
Key Features
01 One-Piece Integrated Design
Combines a reinforced outlet and a pipe nipple into a single forged unit, eliminating one field weld and reducing installation time and cost.
02 Superior Forged Strength
Manufactured using advanced forging techniques to ensure high mechanical strength, fatigue resistance, and durability in high-pressure systems.
03 Versatile Outlet Connections
Available with male Threaded (NPT/BSP) or plain-end Socket Weld (SW) outlets, providing easy and reliable connections for valves and instruments.
04 Standards Compliant
Designed and manufactured in accordance with MSS-SP-97 and relevant ASTM material standards for guaranteed quality and global compatibility.
05 Material Durability
Available in a wide range of materials, including carbon steel, stainless steel, and nickel alloys, to ensure long-term corrosion resistance.
06 Ideal for Vents & Drains
The perfect solution for small-bore piping, vents, drains, and instrument take-offs that require a strong, reliable branch connection.
