Lartrolet
Product Details
Lartrolet
We manufacture a wide range of high-strength, corrosion-resistant welding outlets (olet fittings) in materials such as Stainless Steel, Carbon Steel, and various alloys to ensure reliable, integral branch connections even in high-pressure and high-temperature environments.
Description

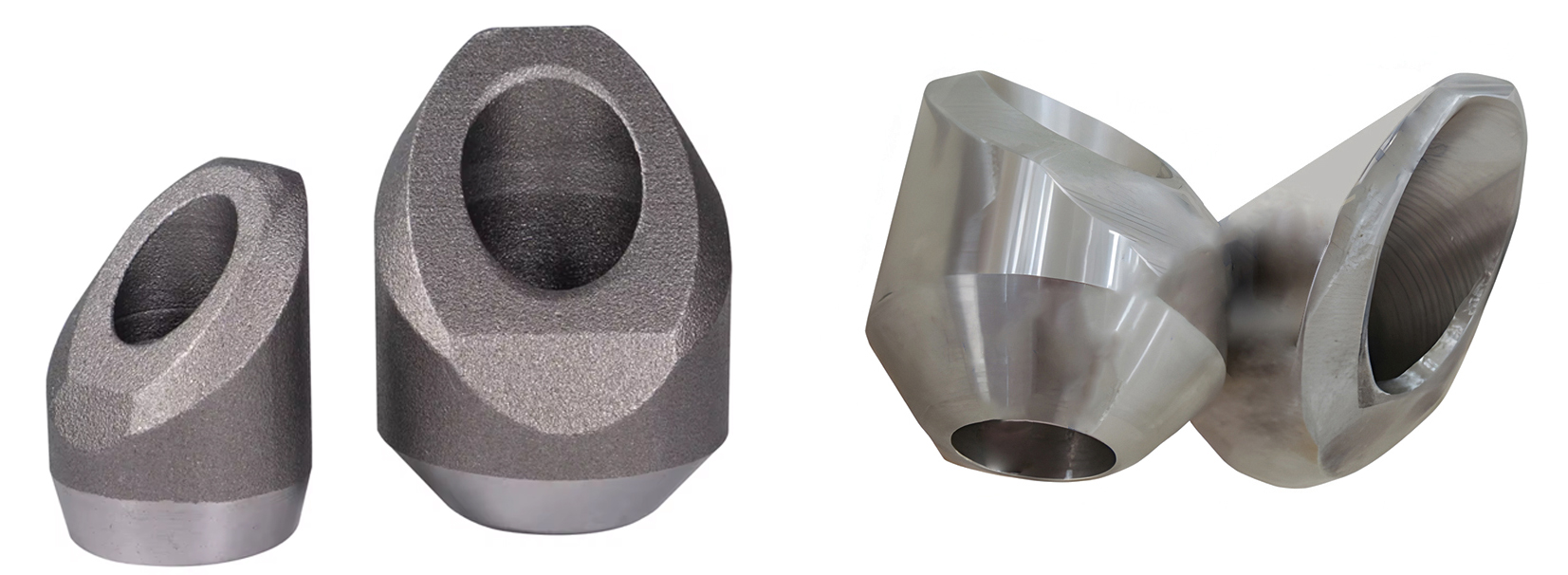

A Latrolet (also known as a Lateral Outlet) is a specialized branch connection fitting used to create a 45° lateral branch from a main run pipe. This design is ideal for applications requiring an angled take-off for specific piping layouts or to improve flow dynamics by reducing turbulence compared to a standard 90° connection. Manufactured through a forging process, Latrolets provide integral reinforcement and exceptional mechanical strength. They are available with Butt Weld (BW), Socket Weld (SW), or Threaded (NPT/BSP) outlet connections, making them highly versatile. Commonly made from carbon steel, stainless steel, and alloy steels, they are used in high-pressure, high-temperature services within the oil & gas, petrochemical, and power generation industries.
Specifications of Lartrolet (Welding Outlet)
| Specification | Details |
|---|---|
| Product | Latrolet (Lateral Outlet Fitting) |
| Branch Angle | 45° Degree (Standard). Other angles available on request. |
| Outlet Size Range | 1/2" to 24" (DN15 to DN600) |
| Run Pipe Size Range | Up to 36" (DN900) or larger |
| Outlet Connection Types | Butt Weld (BW): Sch 40, Sch 80, XS, Sch 160, XXS Socket Weld (SW): Class 3000, 6000 Threaded (NPT/BSP): Class 3000, 6000 |
| Standards |
MSS-SP-97 (Integrally Reinforced Forged Branch Outlet Fittings) ASME B16.11 (Socket-Welding and Threaded) ASME B16.9 (Butt Welding) ASTM A105, ASTM A182, ASTM A350 |
| Material Grades |
Carbon Steel: ASTM A105, A350 LF2 Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321 Alloy Steel: ASTM A182 F1, F5, F9, F11, F22, F91 Duplex Steel: UNS S31803, S32205 Nickel Alloys: Inconel 625, Monel 400, Hastelloy C276 |
| Manufacturing Process | Forged, Heat Treated, Precision Machined at 45° Angle |
| Testing & Certification |
PMI, NDT (MT, PT, UT), Dimensional Check, Angle Verification Mill Test Certificates (EN 10204 3.1 / 3.2) |
| Applications | Oil & Gas, Petrochemical, Power Generation, Refineries, Industrial piping systems requiring 45° angled branch connections. |
| Latrolet Design Features |
45° Branch: Creates a smooth, angled branch, reducing turbulence. Forged Strength: Provides integral reinforcement for the branch connection. Versatile Outlets: Available in BW, SW, and Threaded ends. Run Pipe Fit-Up: Contoured base for a clean, secure weld to the run pipe. Standard Compliance: Manufactured per MSS-SP-97. |
Key Features
01 45° Lateral Branch Connection
Creates a high-strength, integrally reinforced 45° branch off a main run pipe, ideal for angled piping runs and specialized flow applications.
02 Forged Strength & Durability
Manufactured using advanced forging techniques to ensure high mechanical strength and reliability in high-pressure and high-stress applications.
03 Versatile Outlet Connections
Available in Butt Weld (BW), Socket Weld (SW), and Threaded (NPT/BSP) outlet types to match various branch piping and instrumentation requirements.
04 Standards Compliant
Designed and manufactured in full accordance with MSS-SP-97 and ASTM material standards for guaranteed quality and global compatibility.
05 Optimized Flow Characteristics
The 45° angle provides a smoother flow transition and reduces turbulence and pressure drop compared to a standard 90° tee, improving system efficiency.
06 Material & Corrosion Resistance
Available in a full range of materials including carbon steel, stainless steel, and nickel alloys to ensure long-term performance in corrosive environments.
