Ring Type Joint Flange
Product Details

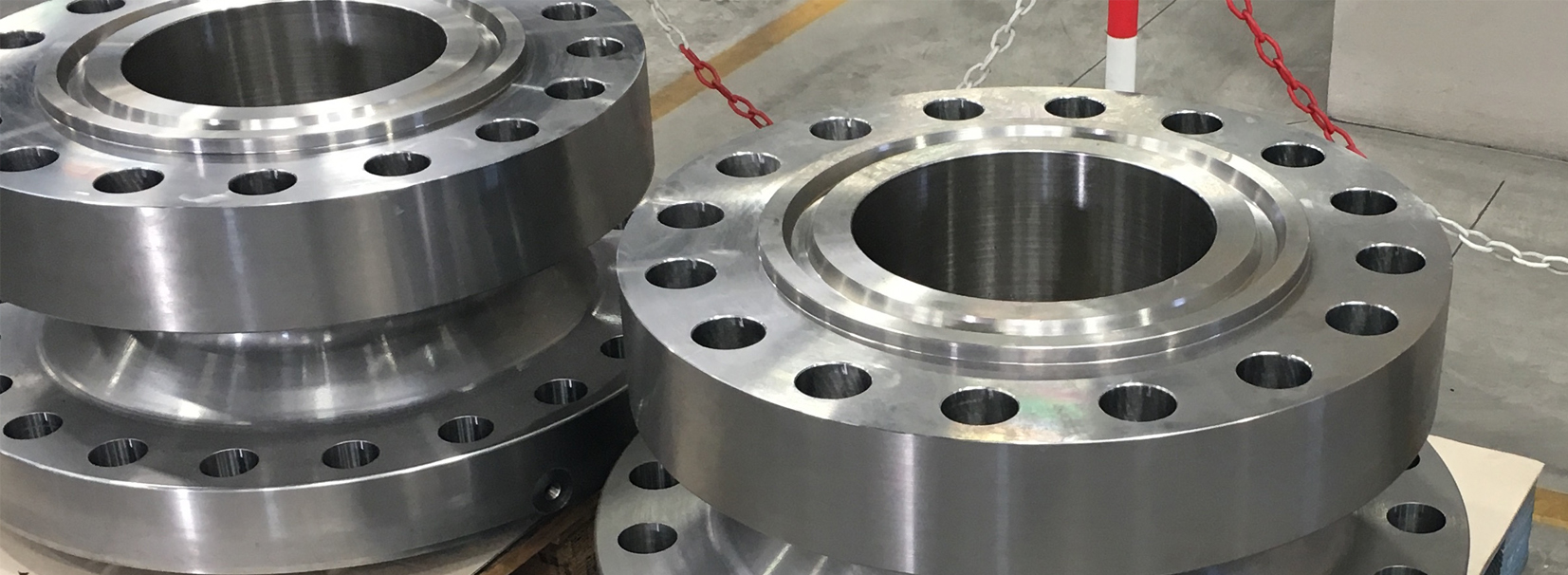

Ring Type Joint Flanges
We manufacture a wide range of high-strength, corrosion-resistant flanges in materials such as Stainless Steel, Carbon Steel, and various alloys to ensure leak-proof performance even in high-pressure environments.
Description
A Ring Type Joint (RTJ) Flange is a specialized component featuring a metallic ring groove designed to hold a precise metal ring gasket. This creates a superior metal-to-metal sealing mechanism, resulting in a high-integrity, leak-proof seal. It is engineered for high-pressure, high-temperature, and corrosive environments where standard gaskets would fail. Constructed from high-grade carbon steel, stainless steel, and alloy materials, RTJ flanges offer exceptional mechanical strength and corrosion resistance, ensuring tight sealing under extreme conditions. They are the preferred choice for critical applications in the oil & gas, petrochemical, and refining industries. Adhering to standards like ASME B16.5 and available in various pressure classes (Class 150, 300, 600+), their precise machining guarantees reliable and repeatable sealing performance.
Specifications of Ring Type Joint (Flange)
| Specification | Details |
|---|---|
| Product | Ring Type Joint (RTJ) Flanges |
| Size Range | 1/2" to 48" (DN15 to DN1200) – Custom sizes available |
| Pressure Ratings | Class 150, 300, 600, 900, 1500, 2500 (As per ASME B16.5) |
| Face Type | Ring Type Joint (RTJ) Metal-Seated Face |
| Standards | ASME B16.5, ASME B16.47, ASTM A105, ASTM A182, MSS-SP-44, API 6A, ISO 9001, EN 1092-1 (on request) |
| Material Grades |
Carbon Steel: ASTM A105, A350 LF2 Stainless Steel: 304, 304L, 316, 316L Alloy Steel: ASTM A182 F1, F11, F22 Duplex Steel: UNS S31803, S32205 Nickel Alloys: Inconel 600/625, Monel 400, Hastelloy C276 |
| Manufacturing Process | Forged, Heat Treated, Precision Machined |
| Ends | Raised Face (RF) with Metal Ring Groove for RTJ Gasket |
| Surface Finish | Black Painted, Pickled, Sand Blasted, Polished, Anti-Rust Coated |
| Testing & Certification | Hydrostatic Test, NDT (UT, RT, MT), PMI, Hardness Test, TPI Inspection, Mill Test Certificates (EN 10204 3.1 / 3.2) |
| Applications | Oil & Gas, Petrochemical, Refining, Power Plants, High-Pressure Steam Systems, Offshore Platforms, Chemical Processing |
| Special Features | Metal-to-Metal Seal, High-Pressure & High-Temperature Resistant, Leak-Proof Under Extreme Conditions, Corrosion Resistant, Suitable for Critical Services |
| RTJ Flange Design Features |
Metal Ring Groove: Precisely machined groove to hold RTJ gasket for a reliable
metal-to-metal seal. High Integrity Seal: Designed to withstand extreme pressure and temperature without leakage. Forged Construction: Provides excellent mechanical strength and durability. Standards Compliant: Manufactured per ASME, ASTM, API, MSS-SP, and ISO standards. Precision Machined Face: Ensures perfect gasket seating and repeatable sealing performance. |
Key Features
01 Metal-to-Metal Seal
RTJ flanges utilize a precisely machined metal ring groove and a corresponding metal gasket to create a reliable, leak-proof seal under high pressure and temperature.
02 High-Pressure & Temperature Resistance
Forged construction and precision machining make RTJ flanges suitable for extreme pressure and temperature environments, common in oil & gas and petrochemical industries.
03 Corrosion & Fatigue Resistance
Available in carbon steel, stainless steel, and alloy steels, RTJ flanges offer excellent corrosion resistance and durability in harsh environments.
04 Standards Compliance
Manufactured according to ASME B16.5, API 6A, MSS-SP-44, and ASTM standards, ensuring dimensional accuracy and global compatibility.
05 Precision Machining
The ring groove and flange face are precision machined to ensure perfect gasket fitment and repeatable sealing performance.
06 Critical Industrial Applications
Ideal for oil & gas, refining, power generation, offshore platforms, and other high-pressure, high-temperature services.
