Elbow Forged Fitting
Product Details

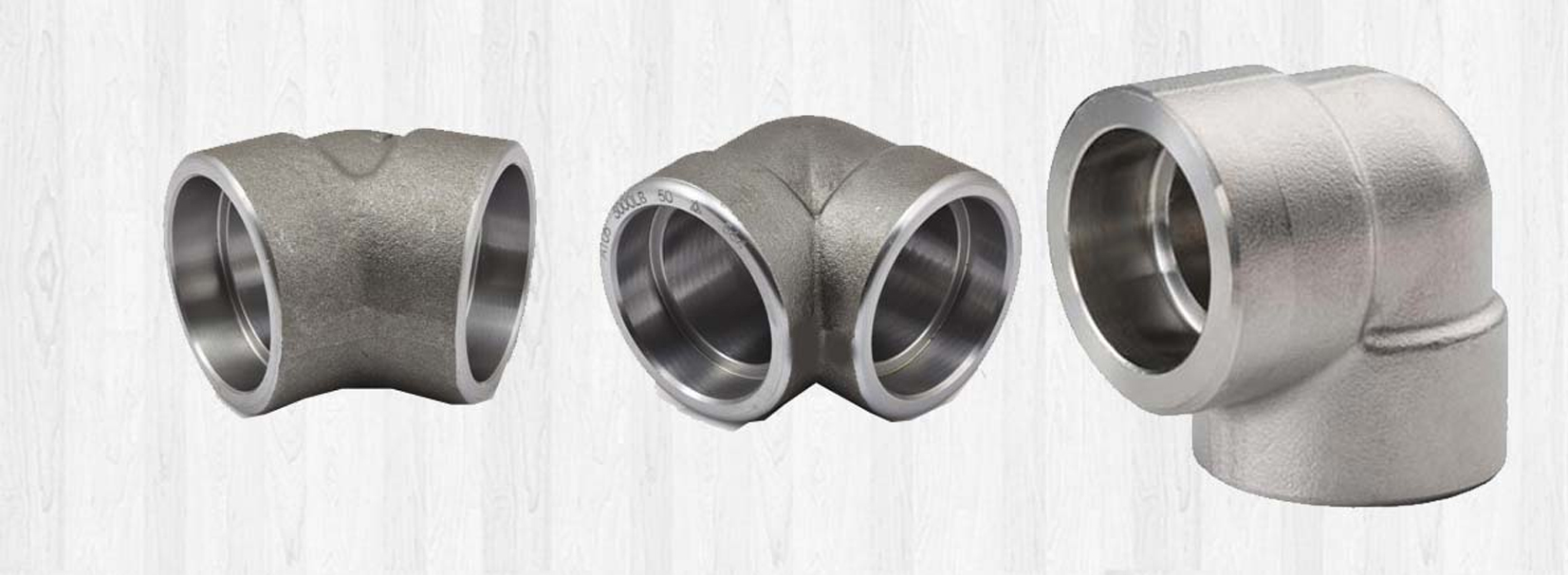

Elbow Forged Fitting
We manufacture a wide range of high-strength, corrosion-resistant forged fittings in materials such as Stainless Steel, Carbon Steel, and various alloys to ensure durable, leak-proof connections even in high-pressure and high-temperature environments.
Description
An Elbow Forged Fitting is a robust component used to change the direction of flow in piping, typically at 45° or 90° angles. Created through precise forging processes, these fittings offer superior strength, durability, and dimensional accuracy, allowing them to withstand high pressure and high-temperature conditions. Commonly made from carbon steel, stainless steel, and alloy steels, they provide excellent resistance to fatigue and corrosion. These features make them ideal for critical industries like oil & gas, petrochemical, and power plants, ensuring tight, leak-resistant joints for reliable flow direction control.
Specifications of Elbow (Forged Fitting)
| Specification | Details |
|---|---|
| Product | Elbow Forged Fittings |
| Size Range | 1/2" to 24" (DN15 to DN600) – Custom sizes available |
| Pressure Ratings | Class 150, 300, 600, 900, 1500, 2500 (As per ASME B16.11) |
| Angle Types | 45°, 90° Elbows |
| Standards | ASME B16.11, ASTM A234, ASTM A403, MSS-SP-43, ISO 9001 |
| Material Grades |
Carbon Steel: ASTM A105, A234 WPB Stainless Steel: 304, 304L, 316, 316L Alloy Steel: ASTM A182 F1, F11, F22 Duplex Steel: UNS S31803, S32205 Nickel Alloys: Inconel 600/625, Monel 400, Hastelloy C276 |
| Manufacturing Process | Forged, Heat Treated, Precision Machined |
| Ends | Butt Weld Ends, Socket Weld Ends (as per requirement) |
| Surface Finish | Black Painted, Pickled, Sand Blasted, Polished, Anti-Rust Coated |
| Testing & Certification | Hydrostatic Test, NDT (UT, RT, MT), PMI, Hardness Test, TPI Inspection, Mill Test Certificates (EN 10204 3.1 / 3.2) |
| Applications | Oil & Gas, Petrochemical, Power Generation, Chemical Processing, HVAC, Shipbuilding, High-Pressure and High-Temperature Piping Systems |
| Special Features | Superior Mechanical Strength, High Corrosion Resistance, Precise Dimensional Accuracy, Reliable Flow Direction Control, Suitable for Extreme Conditions |
| Elbow Forged Fitting Design Features |
Forged Construction: Ensures high strength and durability under pressure. Precision Machining: Provides accurate dimensions for leak-free joints. Versatile Ends: Available in butt weld and socket weld ends for various piping requirements. Standards Compliant: Manufactured according to ASME, ASTM, MSS-SP, and ISO standards. Corrosion & Fatigue Resistant: Suitable for harsh environments and cyclic loading conditions. |
Key Features
01 Forged Construction
Elbow fittings are manufactured by forging, providing superior mechanical strength and resistance to high pressure and temperature stresses.
02 Precise Angle & Flow Control
Available in 45° and 90° angles, these elbows ensure accurate flow direction changes with minimal turbulence and pressure drop.
03 Material Versatility
Manufactured using carbon steel, stainless steel, and alloy steels for excellent corrosion resistance and suitability in harsh environments.
04 Standards Compliance
Manufactured according to ASME B16.11, ASTM A234, and MSS-SP-43 standards, ensuring dimensional accuracy and compatibility with piping systems worldwide.
05 Smooth Internal Surface
Precision machining ensures a smooth internal bore to minimize flow resistance and reduce the risk of erosion and turbulence.
06 Wide Industrial Applications
Widely used in oil & gas, petrochemical, power plants, chemical processing, and shipbuilding industries for high-pressure, high-temperature piping.
