Nipple Forged Fitting
Product Details
Nipple Forged Fitting
We manufacture a wide range of high-strength, corrosion-resistant forged fittings in materials such as Stainless Steel, Carbon Steel, and various alloys to ensure durable, leak-proof connections even in high-pressure and high-temperature environments.
Description

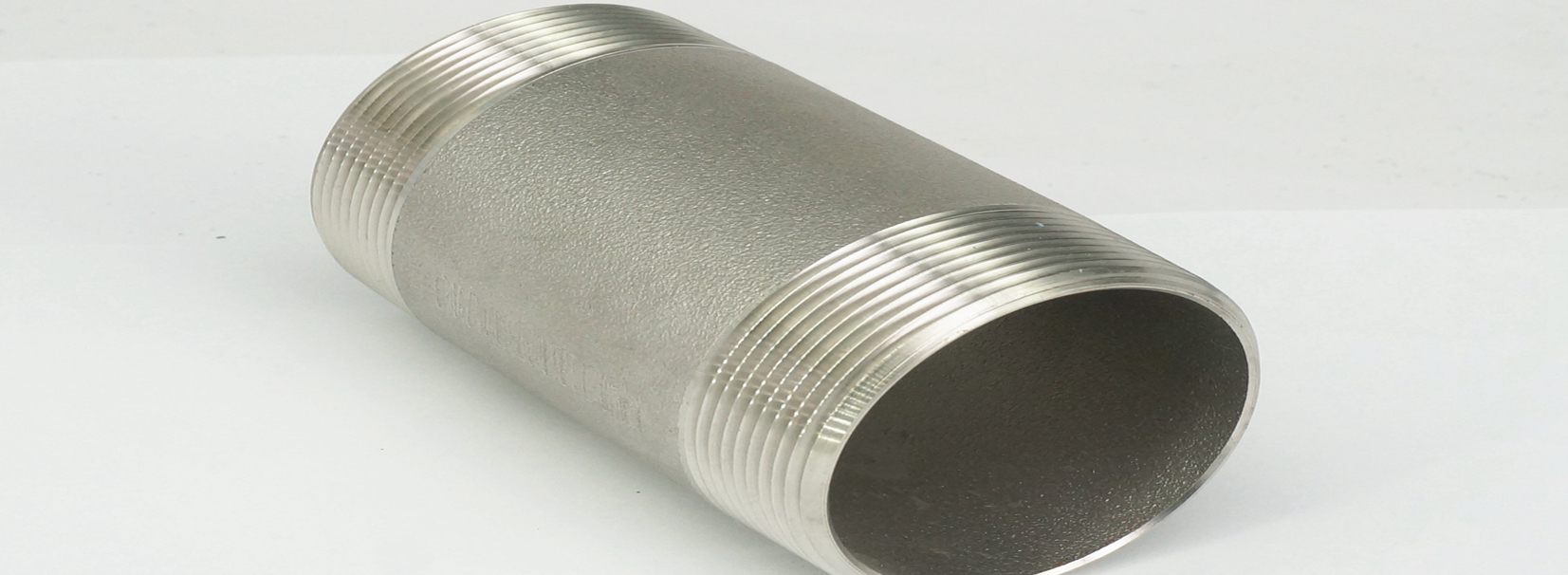

A Nipple Forged Fitting is a short pipe segment with male threads on one or both ends, used to connect two other fittings or pipes. It is essential for creating close nipple connections or for the extension of pipe runs. Manufactured using high-pressure forging techniques, these nipples provide superior mechanical strength, dimensional accuracy, and resistance to corrosion. Available in carbon steel, stainless steel, alloy steel, and nickel alloys, they are ideal for oil & gas, chemical, petrochemical, and power generation applications. With various thread types (NPT, BSP) and pressure ratings (Class 3000/6000/9000), they ensure a tight, leak-proof seal in high-pressure and critical service conditions.
Specifications of Nipple (Forged Fitting)
| Specification | Details |
|---|---|
| Product | Nipple Forged Fittings |
| Size Range | 1/8" to 12" (DN6 to DN300) – Custom sizes available |
| Pressure Ratings | Class 3000, 6000, 9000 (as per ASME B16.11) |
| Types | Close Nipple, Hex Nipple, Pipe Nipple, Swage Nipple, Reducing Nipple |
| Standards | ASME B16.11, ASTM A105, ASTM A182, ASTM A403, MSS-SP-95, ISO 9001 |
| Material Grades |
Carbon Steel: ASTM A105, A106 Gr. B Stainless Steel: 304, 304L, 316, 316L Alloy Steel: ASTM A182 F1, F5, F9, F11 Duplex Steel: UNS S31803, S32205 Nickel Alloys: Inconel 600/625, Monel 400, Hastelloy C276 |
| Manufacturing Process | Forged, Heat Treated, Threaded or Beveled Ends, Precision Machined |
| Ends | Threaded (NPT/BSP), Beveled, Plain End |
| Surface Finish | Black Painted, Galvanized, Polished, Anti-Rust Coated |
| Testing & Certification | Hydrostatic Test, NDT (UT, RT, MT), PMI, TPI Inspection, Hardness Test, Mill Test Certificates (EN 10204 3.1 / 3.2) |
| Applications | Oil & Gas, Chemical Processing, Petrochemical, Power Generation, Marine, Fire Protection Systems, Industrial Piping |
| Special Features | High Strength, Easy Installation, Leak-Proof Threads, Versatile Connection, Compact Design |
| Nipple Forged Fitting Design Features |
Threaded or Weldable Ends: Offers flexible connection options for diverse
systems. Forged Strength: Built to handle high pressure and temperature fluctuations. Dimensional Precision: Accurate thread profile and end finishes for tight sealing. Wide Compatibility: Compatible with various threaded fittings and flanges. Standard Compliance: Manufactured per ASME B16.11 and ASTM material standards. |
Key Features
01 Versatile Connection Types
Nipples are available with threaded (NPT/BSP) or beveled ends for easy integration with threaded or welded piping systems.
02 Forged Strength & Durability
Manufactured using advanced forging techniques to ensure high mechanical strength, impact resistance, and long service life under demanding conditions.
03 Standards Compliant
Conforms to ASME B16.11, MSS-SP-95, and ASTM material specifications to ensure global compatibility and quality assurance.
04 Leak-Tight Threads
Precisely machined thread profiles provide secure, leak-proof connections essential for maintaining system integrity.
05 Material Options
Available in carbon steel, stainless steel, alloy steel, and nickel alloys to withstand corrosion and extreme temperatures.
06 Wide Industrial Applications
Widely used across oil & gas, chemical processing, power plants, marine systems, and fire protection for reliable pipe connections.
