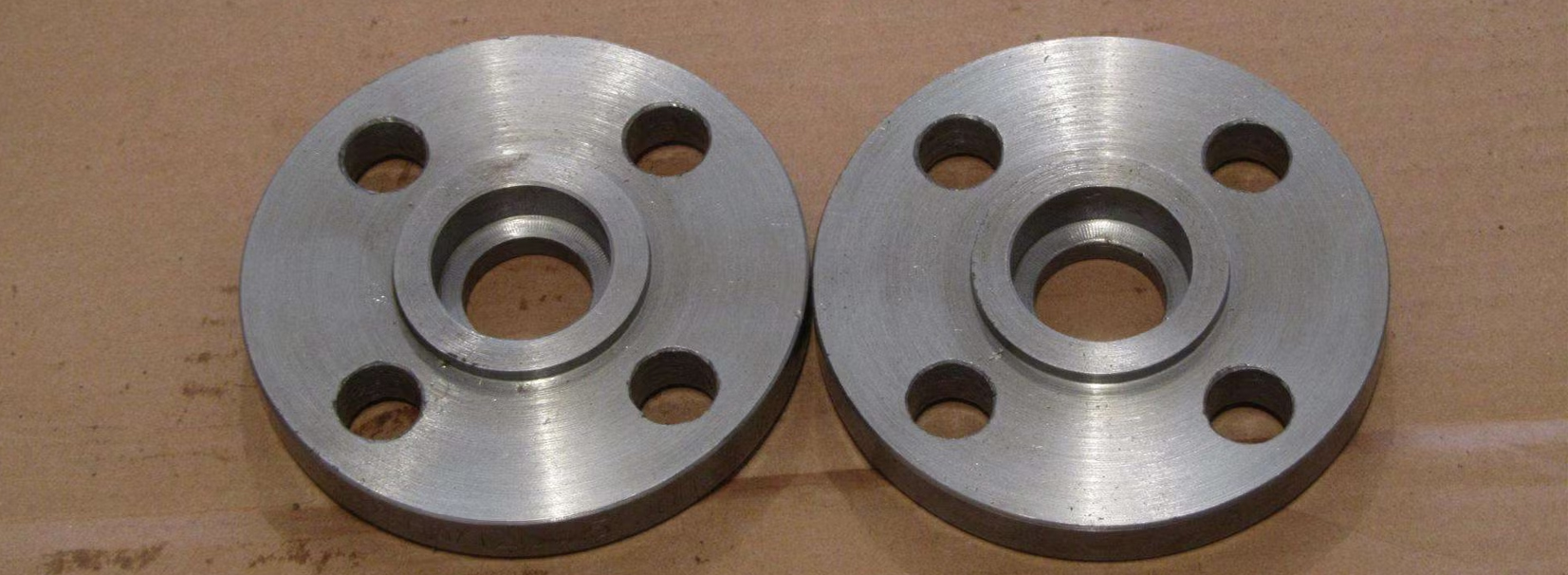

Socket Weld Flange
Product Details
Socket Weld Flanges
We manufacture a wide range of high-strength, corrosion-resistant flanges in materials such as Stainless Steel, Carbon Steel, and various alloys to ensure leak-proof performance even in high-pressure environments.
Description
A Socket Weld Flange is designed for small-diameter, high-pressure piping systems, featuring a recessed socket for the pipe to be inserted. It is then secured by a fillet weld around the outside, creating a leak-proof and structurally strong connection ideal for applications requiring precision and durability. Manufactured from carbon steel, stainless steel, and alloy steels, these flanges offer excellent corrosion resistance and are built to withstand high pressure and high temperature conditions. They are commonly used in the oil & gas, petrochemical, power generation, and refinery industries. Available in various pressure classes (Class 150, 300, 600, up to 1500), their compact design and superior vibration and fatigue resistance make them a reliable choice for critical piping systems.
Specifications of Socket Weld (Flange)
| Specification | Details |
|---|---|
| Product | Socket Weld Flanges |
| Size Range | 1/2" to 2" (DN15 to DN50) – Custom sizes available |
| Pressure Ratings | Class 150, 300, 600, 900, 1500 (As per ASME B16.5) |
| Face Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) – on request |
| Wall Thickness | As per Schedule 40, 80, 160 or custom specifications |
| Standards | ASME B16.5, ASME B16.11, ASTM A105, ASTM A182, MSS-SP-44, ISO 9001, EN 1092 (on request) |
| Material Grades |
Carbon Steel: ASTM A105, A350 LF2 Stainless Steel: 304, 304L, 316, 316L Alloy Steel: ASTM A182 F1, F11, F22 Duplex Steel: UNS S31803, S32205 Nickel Alloys: Inconel 600/625, Monel 400, Hastelloy C276 |
| Manufacturing Process | Forged, Heat Treated, Machined |
| Ends | Socket Weld (Recessed socket for pipe insertion, fillet weld applied) |
| Surface Finish | Black Painted, Anti-Rust Coated, Pickled, Polished, Sand Blasted |
| Testing & Certification | Hydrostatic Test, NDT (UT, RT, MT), PMI, Hardness Testing, TPI Inspection, Mill Test Certificates (EN 10204 3.1 / 3.2) |
| Applications | Oil & Gas, Petrochemical, Power Generation, Refining, Marine, Chemical Processing, High-Pressure Steam, HVAC Systems |
| Special Features | Compact Design, High-Pressure Handling, Easy Installation, Leak-Proof Seal, Corrosion Resistance, Durable Performance |
| Socket Weld Flange Design Features |
Secure Pipe Fit: Recessed socket allows pipe to sit accurately for fillet
welding. Leak-Proof Joint: Socket weld and fillet weld provide excellent sealing against leaks. Compact Footprint: Ideal for limited-space and small-diameter piping systems. High Strength: Forged construction enables superior mechanical and pressure performance. Standards Compliant: Manufactured per ASME, ASTM, and ISO guidelines for quality assurance. |
Key Features
01 Leak-Proof Seal
Socket weld flanges offer a tight and reliable seal when used with fillet welds, preventing leakage in high-pressure systems and ensuring secure pipe connections.
02 Compact Design
With their small face-to-face dimensions, socket weld flanges are perfect for tight-space installations in small bore piping systems, especially up to 2 inches in diameter.
03 High Strength & Pressure Rating
Forged construction ensures socket weld flanges can handle medium to high-pressure environments, with enhanced fatigue resistance compared to threaded flanges.
04 Standards Compliant
Manufactured in accordance with ASME B16.5, ANSI, and MSS-SP standards, ensuring dimensional accuracy and international compatibility.
05 Easy Alignment
Socket weld flanges allow precise pipe positioning before welding, simplifying the installation process and ensuring clean internal bore alignment.
06 Industrial Versatility
Widely used in oil & gas, petrochemical, chemical processing, power plants, and shipbuilding, these flanges are trusted in critical high-pressure applications.
