Socket Welding Outlets
Product Details
Socket Welding Outlets
We manufacture a wide range of high-strength, corrosion-resistant welding outlets (olet fittings) in materials such as Stainless Steel, Carbon Steel, and various alloys to ensure reliable, integral branch connections even in high-pressure and high-temperature environments.
Description

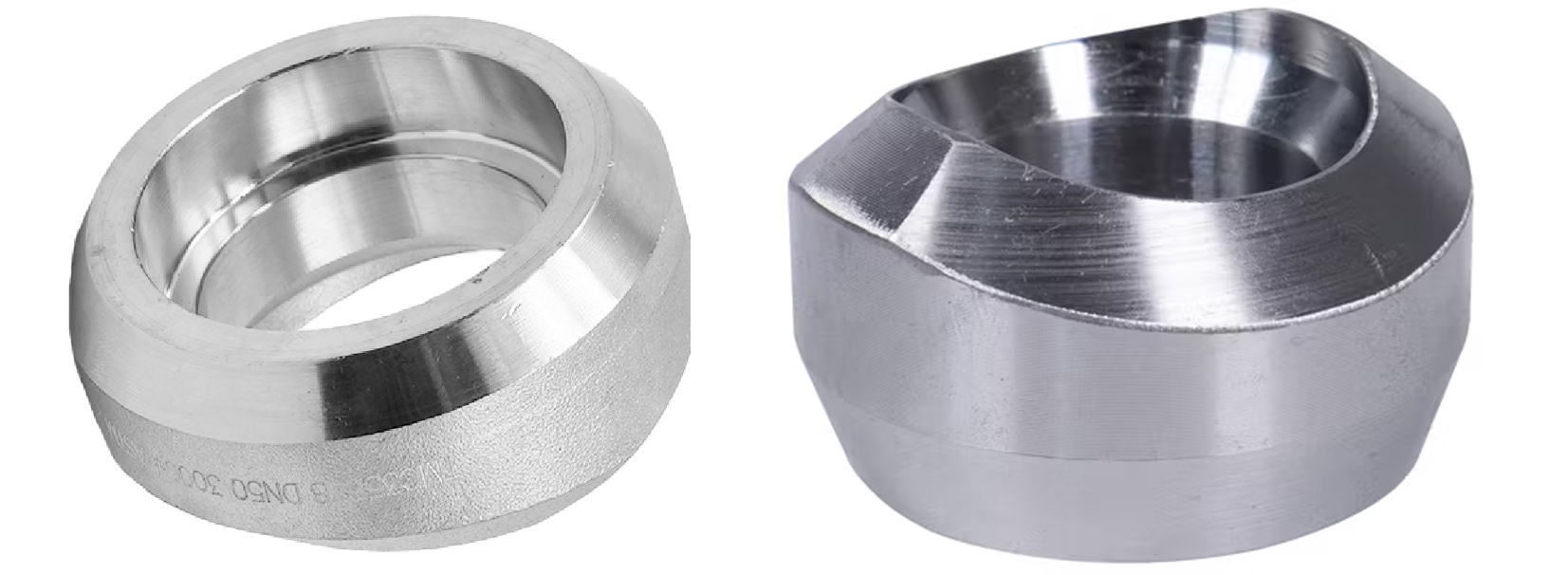

A Socket Outlet, or Sockolet, is a high-strength forged branch fitting designed to create a 90° socket weld branch connection on a run pipe. It features a socket-weld outlet, allowing the branch pipe to be inserted and then secured with a fillet weld, creating a strong, leak-proof joint. This design provides integral reinforcement and is ideal for small-bore piping systems, such as vents, drains, and instrument connections. Manufactured from carbon steel, stainless steel, and alloy steels, Sockolets are built to withstand high-pressure and high-temperature conditions in demanding industries like oil & gas, petrochemical, and power generation.
Specifications of Socket (Welding Outlet)
| Specification | Details |
|---|---|
| Product | Socket Outlet (Sockolet) |
| Outlet Size Range | 1/2" to 4" (DN15 to DN100) |
| Run Pipe Size Range | Up to 36" (DN900) or larger |
| Outlet Connection Type | Socket Weld (SW) |
| Pressure Class | Class 3000 (Std, XS, Sch 160) Class 6000 (Sch 80, XS, XXS) |
| Standards |
MSS-SP-97 (Integrally Reinforced Forged Branch Outlet Fittings) ASME B16.11 (Socket-Welding Forged Fittings) ASTM A105, ASTM A182, ASTM A350 |
| Material Grades |
Carbon Steel: ASTM A105, A350 LF2 Stainless Steel: ASTM A182 F304, F304L, F316, F316L Alloy Steel: ASTM A182 F1, F5, F9, F11, F22, F91 Duplex Steel: UNS S31803, S32205 Nickel Alloys: Inconel 625, Monel 400 |
| Manufacturing Process | Forged Body, Heat Treated, Precision Machined Socket |
| Testing & Certification |
PMI, NDT (MT, PT), Dimensional Check, Socket Bore Inspection Mill Test Certificates (EN 10204 3.1 / 3.2) |
| Applications | Vents, Drains, Instrument Connections, Small-Bore Piping, Oil & Gas, Petrochemical, Power Plants, Chemical Processing |
| Sockolet Design Features |
Socket Weld Outlet: Provides easy fit-up and a strong fillet weld
connection. Forged Reinforcement: Integrally reinforces the branch connection. Contoured Base: Beveled base ensures a clean, strong weld to the run pipe. High Pressure: Designed for Class 3000 and 6000 pressure systems. Standard Compliance: Manufactured per MSS-SP-97. |
Key Features
01 Secure Socket Weld Connection
Features a 90° socket weld outlet, allowing the pipe to be inserted and fillet welded for a strong, leak-proof, and secure branch connection.
02 Integrally Reinforced Strength
Manufactured using advanced forging techniques to provide integral reinforcement, ensuring durability and fatigue resistance in high-pressure systems.
03 Ideal for Small-Bore Piping
The perfect solution for creating branch connections on small-bore piping systems, commonly used for vents, drains, and instrument take-offs.
04 Standards Compliant
Designed and manufactured in full compliance with MSS-SP-97 and ASME B16.11, ensuring global compatibility and reliable performance.
05 High-Pressure & Temp Rated
Available in Class 3000 and Class 6000, making them suitable for high-pressure and high-temperature services in demanding industrial environments.
06 Material Versatility
Available in a full range of materials including carbon steel, stainless steel, and alloys to ensure excellent corrosion resistance and long service life.
