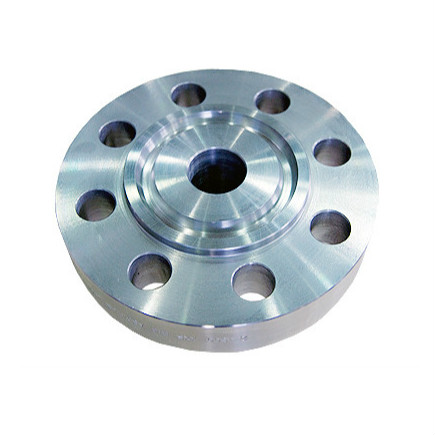

Ring Type Joint Flanges (RTJ)
Description
We, Sanghvi International extends a product line that is impeccable and unique with a complete customer satisfaction experience. We are manufacturers, suppliers, and exporters of a range of Ring Type Joint Flanges
(RTJ) that are best-in-class. A Ring type joint flange(RTJ) is a machined metallic ring with a deep groove cut into its face. This groove rests a metal ring which gets compressed when the connecting bolts of the flange are tightened. This compression results in a leak-proof, close-fitting seal on the pipe or connection. Stainless Steel Ring type Joint Flanges are classically used in high-pressure and high-temperature services, while Carbon Steel Ring type Joint Flanges are spill-proof.

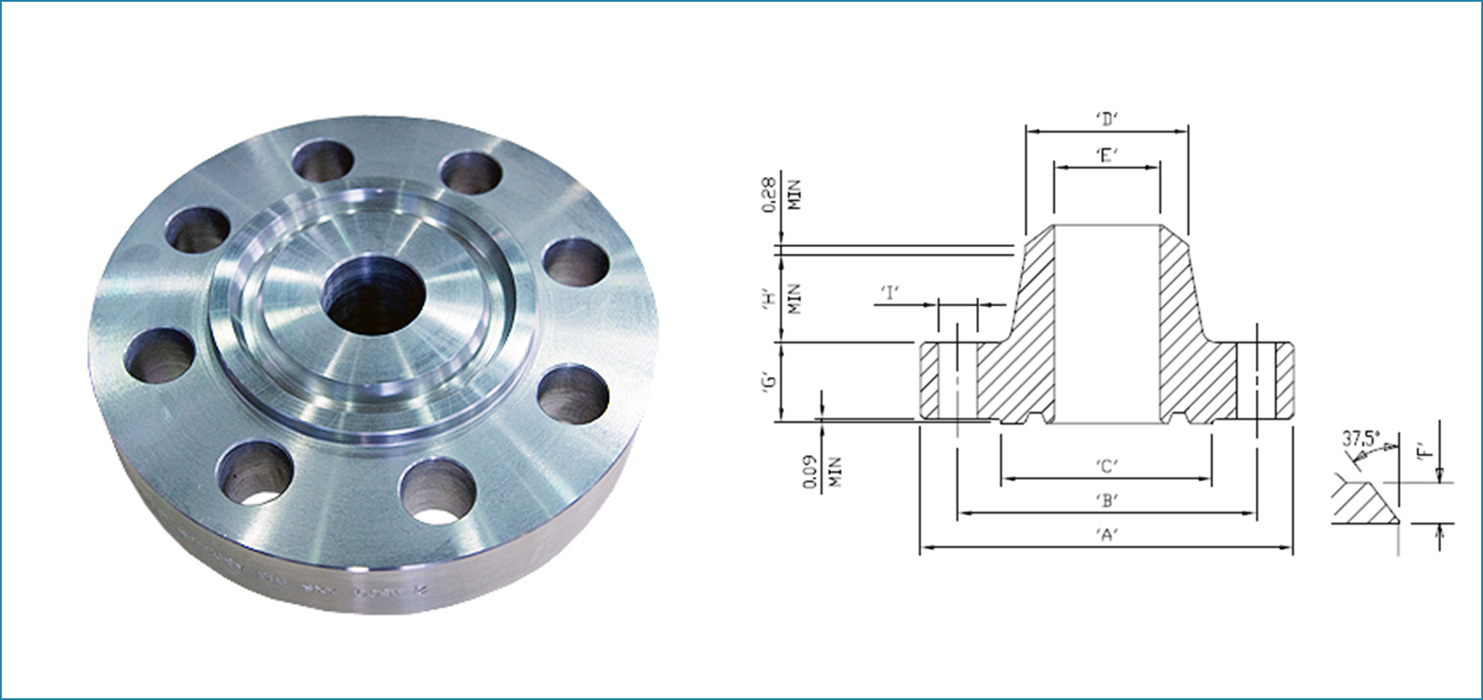

Product Structure
Standard Specification For Ring Type Joint Flanges
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Material & Grades of Ring Type Joint Flanges (RTJ) :
Stainless Steel Ring Type Joint Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Ring Type Joint Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Ring Type Joint Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Ring Type Joint Flanges : ASTM A350, LF2, LF3
Alloy Steel Ring Type Joint Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Ring Type Joint Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10),
C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Ring Type Joint Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS
No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel
600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No.
N10276), Alloy 20 (UNS No. N08020)
ASME B16.5 Raised Faced Ring Type Joint Flanges Available Types
| ANSI B16.5 Ring Type Joint Flanges | Raised Face Ring Type joint Flange |
| RTJ Ring Type joint Flange | ASME B16.5 RTJ Flange Dimensions |
| ASME B16.5 Ring Type Joint Flanges | ANSI B16.5 Class 150 Ring Type joint Flanges |
| Class 150 Ring Type Joint Flanges | Flat Face Ring Type joint flange |
| Ring Type Joint Flange class 900 | Ring Type joint Flange Class 600 |
| ANSI B16.5 class 300 Ring Type Joint Flange | ANSI 150 Ring Type joint Flange |
| Slip On Ring Type joint flange | High Quality Ring Type joint Flanges |
| Weld Neck Ring Type joint | ANSI Ring Type Joint Flange |
| Ring Type joint Blind Flange | DIN Ring Type joint Flanges |
