Flanges

Long Weld Neck Flanges

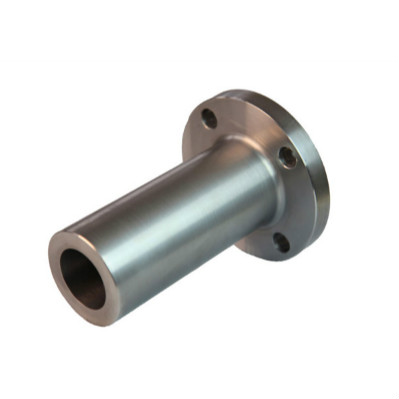

LONG WELD NECK FLANGES


Description

Sanghvi International is an ISO enterprise. Incorporated in 1991, we have expanded ourselves as well our services, products and production patterns, emerging as a manufacturer, supplier and exporter of Long
Weld Neck Flanges in hard-to-nd metals. Long Weld Neck Flanges have a hub that extends from the Flanges at the surface, which helps in accommodating the pipe more easily. Alloy Steel Long Weld Neck Flange fall under the group of specialty flanges, reinforcement in services at higher temperatures in the oil industry. A Carbon Steel Long Welding Neck Flanges
is preferable in the petroleum and chemical industry as they operate
under actuating temperature ranges.


Product Structure

Standard Specification For Long Weld Neck Flanges

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Material & Grades of Long Weld Neck Flanges :

Stainless Steel Long Weld Neck Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel Long Weld Neck Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Long Weld Neck Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel Long Weld Neck Flanges : ASTM A350, LF2, LF3

Alloy Steel Long Weld Neck Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Long Weld Neck Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10),
C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy Long Weld Neck Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS
No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel
600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No.
N10276), Alloy 20 (UNS No. N08020)


ASME B16.5 Long Weld Neck Flanges Available Types

Long Weld Neck Flange Long Welding Neck Flanges
ANSI B16.5 Long Weld Neck Flanges Long Weld Neck Flange Dimensions
ASME B16.5 Long Weld Neck Flanges ANSI B16.5 Class 150 Long Weld Neck Flanges
Stainless Steel Long Weld Neck Flanges Suppliers SS Long Welding Neck Flange
Long Weld Neck Plate Flanges Dealer ASME B16.47 Series A and B Long Weld Neck Flanges Exporter
ANSI B16.5 class 150 Long Weld Neck Flange Stockholder ANSI 150 Long Weld Neck Flange Distributors
Carbon Steel Long Welding Neck Flange High Quality Long Weld Neck Flanges Manufacturer
ASTM A182 Stainless Steel Long Weld Neck Flange Duplex Steel Long Weld Neck Flange
Super Duplex Steel Long Weld Neck Forged Flange Copper Nickel Long Weld Neck Pipe Flanges
High Nickel Alloy Long Welding Neck Flanges Hastelloy Flat Faced Long Weld Neck Flanges Stockist
Titanium ASME B16.47 Series A and B Long Weld Neck Flanges Inconel Long Weld Neck Flanges
